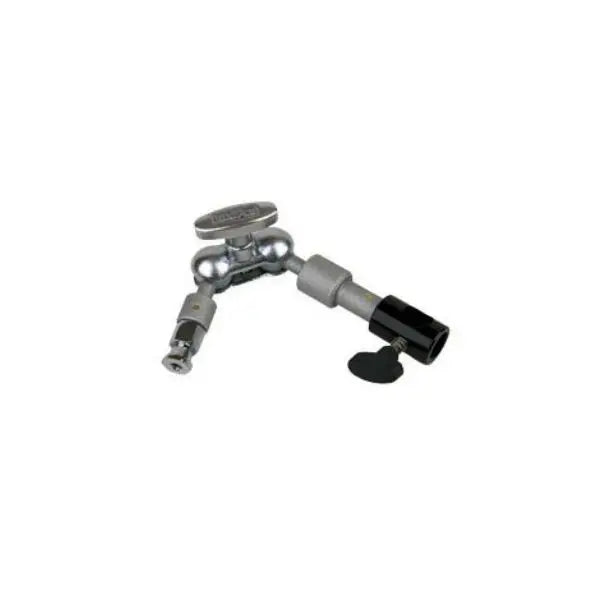

LitePad Swivel Arm — ball-and-socket positioning for LitePads
A ball-and-socket arm for precise positioning of LitePads. Female 5/8" one end, female 1/4"-20 the other — so it sits on a stand stud and takes a 1/4"-20 bolt. 222 mm long, 2.5 kg max. load.
Image: Rosco
Angle the light exactly where you want it
Sits between a stand (or other 5/8" stud) and the LitePad’s 1/4"-20 bracket so you can tilt and rotate the panel freely.
- Ball-and-socket joint for precise aim
- Female 5/8" fits light stand studs
- Female 1/4"-20 takes the Axiom 1/4"-20 Bracket or LitePad bracket bolts
Stands, Loop and camera rigs
On a light stand
Stand → Swivel Arm → Axiom 1/4"-20 Bracket for fully adjustable aim.
LitePad Loop on a stand
Pair with the Loop Light Stand Plate to put a Loop on a stand.
Camera & rig
Use with the LitePad Cold Shoe Mount for on-camera positioning.
What it is — and what it isn’t
Use it for
- LitePads within 2.5 kg, with a 1/4"-20 bolt bracket
- Light stands with a 5/8" stud
- LitePad Loop with the Light Stand Plate
Don’t use it for
- The 24" x 24" LitePad — over the 2.5 kg max. load
- Hardware needing a male 5/8" pin — this arm has female ends
- Loads over 2.5 kg (5.5 lb)
Getting the best result
- Fit the female 5/8" end over the stand’s stud and tighten.
- Thread the LitePad’s 1/4"-20 bracket bolt into the other end.
- Loosen the ball joint, aim the light, then lock it firmly.
- Check the load stays within 2.5 kg.
Key details
| Brand | Rosco |
|---|---|
| Part number | 290661581420 |
| Type | Ball-and-socket arm |
| Connectors | Female 5/8" to female 1/4"-20 |
| Length | 222 mm (8.75") |
| Max. load | 2.5 kg (5.5 lb) |
Common questions
Which LitePads does the Swivel Arm fit?
Rosco says it allows precise positioning of all LitePads, connecting via the 1/4"-20 bolt on LitePad and Axiom brackets. The 24" x 24" model exceeds its 2.5 kg max. load, so it isn’t suitable for that size.
What does it connect to?
Female 5/8" one end (light stand studs) and female 1/4"-20 the other (1/4"-20 bolts such as the Axiom 1/4"-20 Bracket).
Can I use it with the LitePad Loop?
Yes — Rosco notes the Loop Light Stand Plate’s 1/4"-20 screw attaches to a swivel arm and then to a light stand.
How long is it?
8.75" (222 mm).
Check your LitePad model before ordering — if you’re unsure, send us the model or part number and we’ll confirm. Compatibility and specifications are from Rosco product data and are a guide only.
