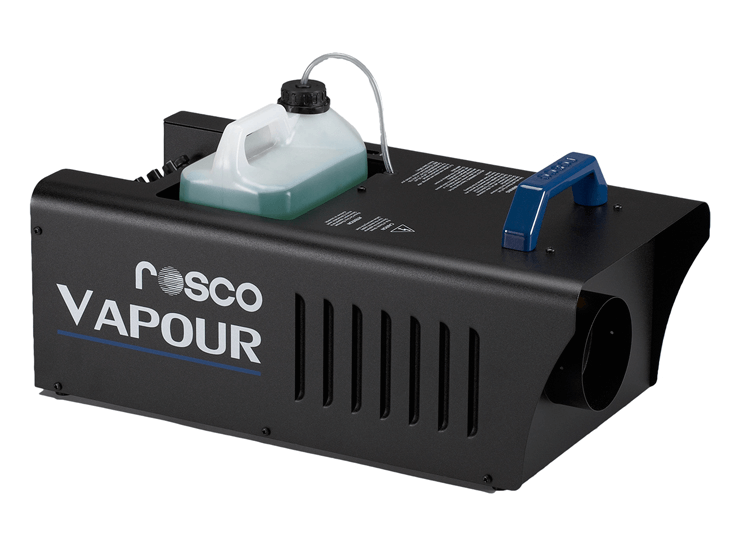

Rosco Vapour Fog Machine — continuous fog with DMX and timed remote
The workhorse of Rosco’s Vapour family: high-volume, continuous fog output with fine control from wisps to billowing clouds, a detachable timed remote, built-in DMX and a simple one-step cleaning process.
Image: Rosco
Reliable fog, precisely controlled
Vapour monitors temperature and pump speed to give fine control of output, so one machine covers subtle wisps through to continuous clouds. Core components are designed to be replaced quickly.
- Continuous, high-volume fog output
- Fine control of output
- Detachable timed remote for local control
- Integrated DMX (5-pin XLR in and thru)
- Multi-Link: one remote controls up to four Vapour, Vapour Plus or V-Hazer units via 3-pin XLR
- One-step cleaning; quick-replace core components
Theatre, events and production
Theatre
DMX-cued fog for scene changes, atmosphere and beam effects.
Concerts & events
Continuous output to support lighting rigs and effects.
Film, TV & studios
Controlled atmosphere on set with local remote control.
What it is — and what it isn’t
Use it for
- Venues and productions needing continuous fog
- Programmed fog cues from a lighting desk via DMX
- Local control with the timed remote
- Linking with other Vapour-family units
Don’t use it for
- Non-Rosco fluids — use Rosco fog fluids
- Fine, long-lasting haze — a dedicated hazer such as the V-Hazer is better suited
- Running unattended or in spaces where detectors haven’t been managed
- Use without reading the Rosco user guide and Time-and-Distance Guidelines
Getting the best result
- Read the Rosco user guide before first use.
- Agree fog use with venue management — fog can trigger smoke detectors.
- Fill with a Rosco fog fluid and allow the machine to warm up.
- Set output via the remote or DMX; start low and test the effect in the space.
- Ventilate between uses and clean the machine as the user guide directs.
Key details
| Model | Rosco Vapour (240 V) |
|---|---|
| Product code | 200 82220 0240 |
| Wattage | 1200 W |
| Power | 5.2 A at 230 V AC / 50 Hz |
| Max fluid consumption | 3.6 L per hour |
| Control | Detachable timed remote (250 s, 3 m cable); integrated DMX, 5-pin XLR in & thru; optional closed-contact / 0–10 V interface |
| Dimensions | 574 × 278 × 249 mm |
| Weight | 11.0 kg |
| Housing | 12-gauge steel, powder-coated |
| Fluids (per Rosco) | Designed to use Rosco’s range of fog fluids |
| Approvals (per Rosco) | CE, ETL/cETL, RoHS |
| Warranty | 1 year |
Common questions
What fluid does the Rosco Vapour use?
Rosco says the Vapour is designed to use its range of Academy Award-winning fog fluids. Rosco Fog Fluid is the standard choice; ask us if you need a different effect.
Can I control the Vapour from a lighting desk?
Yes. It has integrated DMX with 5-pin XLR input and pass-through, plus the detachable timed remote for local control.
Can one remote run several machines?
Yes. Multi-Link lets one Vapour remote control up to four Vapour, Vapour Plus or V-Hazer units daisy-chained via 3-pin XLR.
How much fluid does it use?
Up to 3.6 litres per hour at maximum output. Actual use depends on your output setting and run time.
Will it set off smoke detectors?
Fog can trigger smoke detectors. Arrange its use with venue management before the show and follow the venue’s procedures.
Always read the product label, Safety Data Sheet (SDS) and machine user guide before use. Atmospheric effects can set off smoke detectors and reduce visibility — agree their use with venue management in advance, ventilate the space and test the effect before the show. Information is from Rosco product data and is a guide only.
