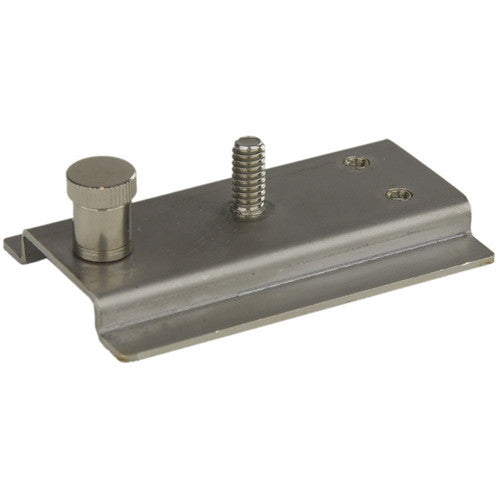

LitePad Axiom 1/4"-20 Bracket — quick-release mount with 1/4"-20 bolt
Snaps into the quick-release mounting system on the back of any LitePad Axiom and gives you a 1/4"-20 bolt to connect to any accessory with a 1/4"-20 female receiver — swivel arms, camera hardware, clamps and more.
Image: Rosco
The most versatile Axiom mount
Rosco’s Axiom housing takes a family of slide-in brackets. This one ends in a standard 1/4"-20 bolt, the common thread on photo and video accessories.
- Slides into the Axiom’s quick-release mount and locks with a spring-action pin
- Connects the Axiom to any 1/4"-20 female receiver
- Swap between Axiom brackets in seconds
Arms, rigs and grip
Swivel arm + light stand
Thread into the female 1/4"-20 end of the LitePad Swivel Arm, which sits on a 5/8" stand stud.
Camera & rig mounting
Attach the Axiom to rigs, magic arms and clamps with a female 1/4"-20 thread.
Grip with a baby pin
Add a 1/4"-20 Baby (5/8") Pin to drop it into a C-stand grip head or other 5/8" receiver.
What it is — and what it isn’t
Use it for
- LitePad Axiom fixtures and Axiom housings (all sizes)
- Accessories with a 1/4"-20 female thread
- A spare bracket for a second rig position
Don’t use it for
- Original (non-Axiom) LitePads without the Axiom housing
- LitePad Loop ring lights
- Loads beyond the rating of the support you thread it into
Getting the best result
- Line the bracket up with the quick-release mounting system on the back of the Axiom housing.
- Slide it in until the integral spring-action pin clicks and locks it in place.
- Tug gently to confirm it’s secure before rigging.
- To remove, release the spring pin and slide the bracket out.
- Thread the 1/4"-20 bolt into your arm, clamp or adapter and tighten firmly.
Key details
| Brand | Rosco |
|---|---|
| Part number | 290639011420 |
| Fits | LitePad Axiom quick-release mounting system (all Axiom sizes) |
| Connection | 1/4"-20 male bolt |
| Locking | Integral spring-action pin |
Common questions
Does a LitePad Axiom already come with a 1/4"-20 bracket?
Rosco’s Axiom spec sheet lists a 1/4-20 Axiom bracket and a 1/4-20 baby pin in the box with Axiom fixtures. This bracket is a spare or extra — handy for leaving one on each rig.
Will it fit a LitePad without the Axiom housing?
No. It slides into the Axiom’s quick-release mount. Unhoused LitePads use the clamp-style LitePad mounting brackets instead.
How do I mount it on a C-stand?
Thread on a 1/4"-20 Baby (5/8") Pin and put that in the grip head — or use the Axiom Baby Pin Bracket instead.
Which other Axiom brackets are there?
Rosco also makes a 5/8" Baby Pin Bracket, a 5/8" Receiver Bracket and a Wall Plate Bracket for the same quick-release mount.
Check your LitePad model before ordering — if you’re unsure, send us the model or part number and we’ll confirm. Compatibility and specifications are from Rosco product data and are a guide only.
