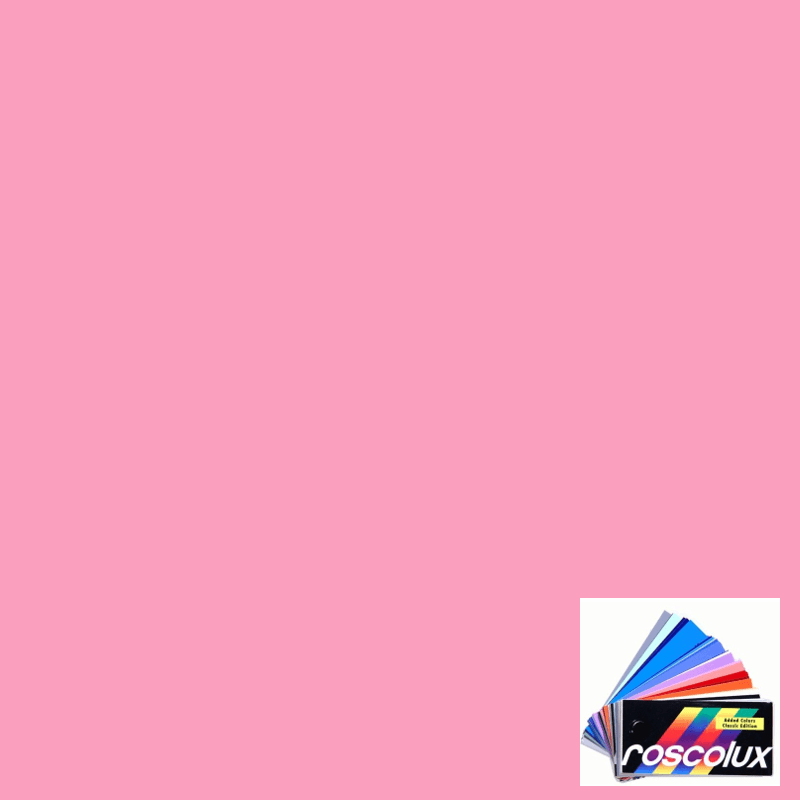

R337 Rosco Roscolux Supergel - True Pink

A cool pink excellent for washes and general illumination. A good follow spot color. A component of early morning sunrise.

Transmission: 55%
Light Loss: -.9 f-stops
Sheet measures 20"x24"

Supergel / Rosclux is regarded as one of the most widely used color filter ranges in the world. It is comprised of more than 75 colors and 15 diffusions that are engineered using Rosco’s exclusive body-colored, polycarbonate extrusion process to offer the longest possible life under hot theatrical and film/TV light fixtures. This unique manufacturing process also provides Supergel with unsurpassed heat-resistance, color-stability and flame-retardancy.

$30.00 AUD

Sale Contact us to order

Taxes included. Shipping calculated at checkout.

How Rosco Color Filters Work

Filters create color by subtracting certain wavelengths of color. Thus, a red filter absorbs blue and green, allowing only the red wavelengths to pass. The process is subtractive, not additive, so the light source must emit a full spectrum.

The Rosco swatchbook provides detailed information on the spectral energy curve of each filter. The curve describes the wavelengths of color transmitted through each filter. For example, Supergel 342 transmits approximately 40% of the violet and blue energy of the spectrum and 75% of the orange and red energy. It absorbs all energy in the yellow and green range.

Durability

The life of color filters depends on many variables: the color, the instrument and lamp used, the dimmer level a filter generally runs at, and the amount of time the light is running. For these reasons it is impossible to assign a "life" for each filter. However some basics knowledge and experience can help with estimates. Dark green and dark blue filters usually burn out the fastest because they absorb the most infrared energy. Absorbing the extra infrared energy causes the plastic to reach it's melting temperature faster. When darker filters are needed try choosing filters that transmit high amounts of the 700 nm range. You can find this information by looking at the Spectral Energy Distribution (S.E.D.) curve located in the swatchbook for each Supergel color filter. Filters than transmit high levels at 700 nm may also transmit high levels in the infrared range above 700 nm.(See the Supergel swatchbook for information on how to read S.E.D. curves.)

To prolong the life of a color filter, align your ellipsoidal lamp to a flat field focus. (Get rid of the hot spot.) You can increase the distance between the lamp and the filter by using a top hat or barn door. In extreme cases, try Rosco Heat Shield or Thermashield to prolong the life of your filters.

Never use a plastic filter directly in front of an open faced lamp. This will nearly always cause premature failure because the heat is trapped and it has nowhere to go except to the plastic filter. Always allow a suitable air gap.
