Shaping the Beam Instead of Changing the Fixture
Buildings are full of tall, narrow things — columns, piers, mullions, reveals, tree trunks, joinery runs. Most light fittings produce a circle. So a great deal of architectural lighting consists of throwing a round beam at a rectangular object and accepting the spill, or buying a different fixture.
There is a third option that gets overlooked, and it is usually the cheapest one on the table: keep the fixture and change the shape of the beam.
The short version
OPTI-SCULPT is an engineered lens that redistributes a beam into a defined shape — symmetric or asymmetric — rather than scattering it the way diffusion does.
It drops into the accessory slot of a fixture you already have. Which means on a retrofit, a heritage building, or a job where the schedule closed months ago, it is often the only variable left.
How the Met used it

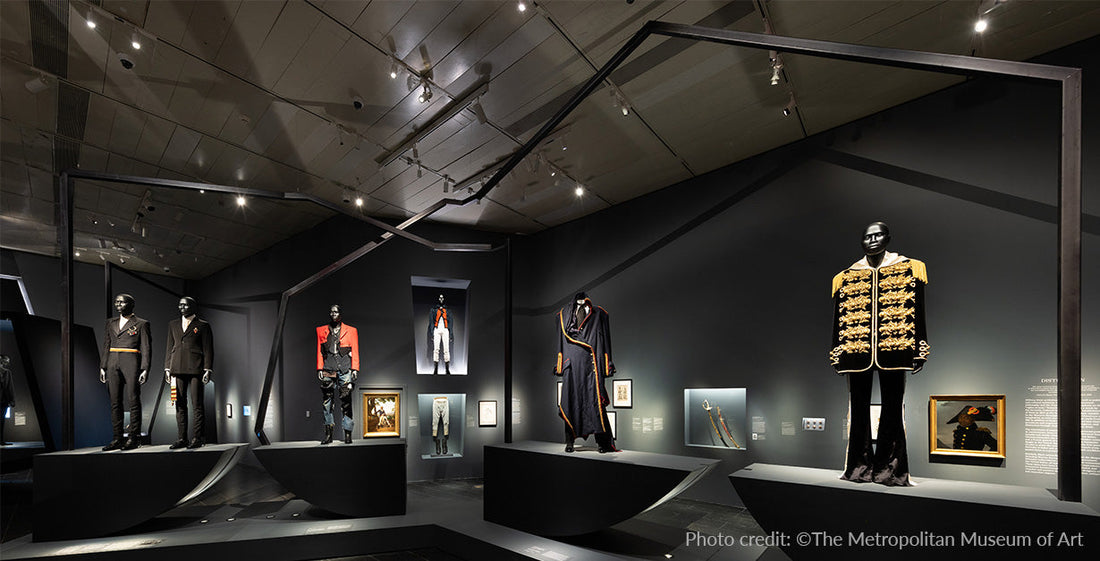

The Met's Superfine: Tailoring Black Style exhibition put bold geometric display forms against dark perimeter walls. The designers needed to light those forms precisely, hold the balance against the artwork, and keep spill off the dark walls.
The constraint was the one most projects have: the track fixture inventory offered 4° and 20°, and nothing else. Two beam angles, a room full of shapes that needed more than two.
Rather than re-specify fixtures, the team lensed what they had. Over 200 fixtures took a reversible 40/60 lens — 40° one way round, 60° when flipped. Close to 100 more took asymmetric lenses, 20×40 and 10×60, to stretch a round beam into an elongated one that suited a tall display or a wide artwork.
“OPTI-SCULPT really allowed us to shape the beam on the fly.”
Renée Molina, Executive Lighting Designer, CS Global
That phrase — on the fly — is the practical point. Beam shape becomes something you adjust at focus, standing in the room, rather than something you commit to at tender.
Reading the designations
The naming is more straightforward than it looks once you know the convention.
| Form | What it means | Where it suits |
|---|---|---|
| Single figure — 10°, 20°, 30° | Symmetric. Opens the beam evenly in every direction. | General widening where the object is roughly square or round |
| Two figures — 10×60, 20×40 | Asymmetric. The first figure is the spread on one axis, the second on the other. A 10×60 stays tight one way and opens wide the other. | Columns, piers, tall displays, long joinery runs, grazing a wall |
| Reversible — 40R60 | Two lenses in one. 40° in one orientation, 60° turned over. | Large installs where you want options without a second stock line |
Eleven patterns are available in total: 10°, 20° and 30° symmetric; 10×20, 10×30, 10×40, 10×60, 15×35, 15×45 and 20×40 asymmetric; plus the 40/60 reversible.
Orientation is part of the specification. An asymmetric lens rotated ninety degrees does the opposite job, which is a genuine advantage at focus and a genuine risk if someone services a fitting and puts it back the wrong way round. Worth a note on the O&M.
It is a lens, not a diffuser
This distinction matters, because the two get specified interchangeably and they behave differently.
Diffusion scatters light. It softens the edge, costs you output, and pushes light everywhere including where you did not want it. An engineered lens redistributes the same light into a defined shape instead.
Rosco's published claims for OPTI-SCULPT follow from that:
- No colour shift — the structures are non-diffracting, so the beam does not pick up a tint or rainbow fringing at the edges.
- Brighter than traditional diffusion or holographic filters, because the light is redirected rather than scattered away.
- Dust and fingerprints do not show in the projected beam. A small-sounding property that matters a great deal on a long-life install where nobody is cleaning optics quarterly.
The material is a heat-resistant, flame-retardant polycarbonate, supplied in seamless sheets of roughly 50×60 cm and 100×60 cm, and it can be cut with a blade to any size or shape. So the lens suits the gate, the accessory slot or the snoot you actually have — rather than the other way round.
Where it earns its place on a building
Columns and piers
The classic mismatch. A narrow beam leaves the column edges dark; a wide beam washes the wall behind and flattens the whole thing. An asymmetric lens lets you hold the spread to the width of the column while running the beam up its full height.
Wall grazing and long joinery runs
Where fixture positions are set by the joinery module rather than by the lighting, you often end up with scallops. Opening one axis and holding the other evens the wash without adding fittings.
Trees and soft landscape
A trunk is a narrow vertical; a crown is a broad mass. Different beam shapes, often from the same fixture type in the same landscape run.
Retrofit and heritage
This is where it does the most work. Where the fixture positions are fixed by an existing track, an existing conduit run, or a building you are not permitted to drill, the beam is the only thing you can still change. A lens is a far smaller intervention than a new fixture position — and a far smaller conversation with a heritage consultant.
Practical notes for a project here
Start with the swatchbook. Eleven patterns is a lot to reason about on paper. The swatchbook lets you hold each one in front of a torch or a sample fitting and see what it actually does, which settles the choice faster than any spec sheet.
Kits before sheets. The 5-piece kits and the 11-piece design kit are the sensible way to trial patterns on a mock-up before committing to full sheets for an install.
Tell us the throw and the target. Send the fixture's native beam angle, the throw distance and the dimensions of the thing you are lighting, and we will work out which pattern gets you there rather than guessing from a catalogue.
Lead time: our OPTI-SCULPT holdings are shallow — several patterns sit at single quantities at any given moment. For an install of any scale, talk to us early so we can bring stock in against your programme rather than after it.
Test first: mock it up on the real fixture, at the real throw, against the real surface. Beam shaping is one of those things that is obvious in person and almost impossible to judge from a drawing.
Got the fixture but not the beam?
Send us the fitting, the throw distance and what you are trying to light. We will tell you which pattern does it, and get a swatchbook or a kit out to you so you can prove it before it goes in the spec.
