OS1545 Rosco OPTI SCULPT™ Light Shaping (Beam Control) Diffuser Lens - 15° x 45°
OS1545 Rosco OPTI SCULPT™ Light Shaping (Beam Control) Diffuser Lens - 15° x 45°
Share
Filters for LED Enhancement, Correction and Softening
Available Sizes
| Format | Imperial Size | Metric Size |
|---|---|---|
| Standard Sheet | 20 in × 24 in | 508 mm × 610 mm |
| Large Sheet | 24 in × 40 in | 610 mm × 1016 mm |
Rosco Opti-Sculpt is supplied as optical film sheets which can be cut to fit many architectural and lighting fixtures.
Rosco Opti-Sculpt Beam Shaping Filters
Rosco Opti-Sculpt is a specialised range of optical lighting films designed to reshape and control the beam distribution of LED and architectural lighting fixtures.
Unlike traditional diffusion filters that simply soften light, Opti-Sculpt lenses redirect and spread light in controlled directions. This allows lighting designers and architects to precisely shape how light interacts with surfaces.
- Transforms narrow LED beams into controlled wall washes
- Shapes light without excessive light loss
- Improves uniformity across architectural surfaces
- Helps eliminate hot spots and uneven lighting
- Flexible material that can be cut to fit many fixtures
Common Applications
- Architectural façade lighting
- Museum and gallery lighting
- Wall grazing and wall washing
- Retail display lighting
- Landscape lighting
- Lighting installations and exhibitions
How Opti-Sculpt Works

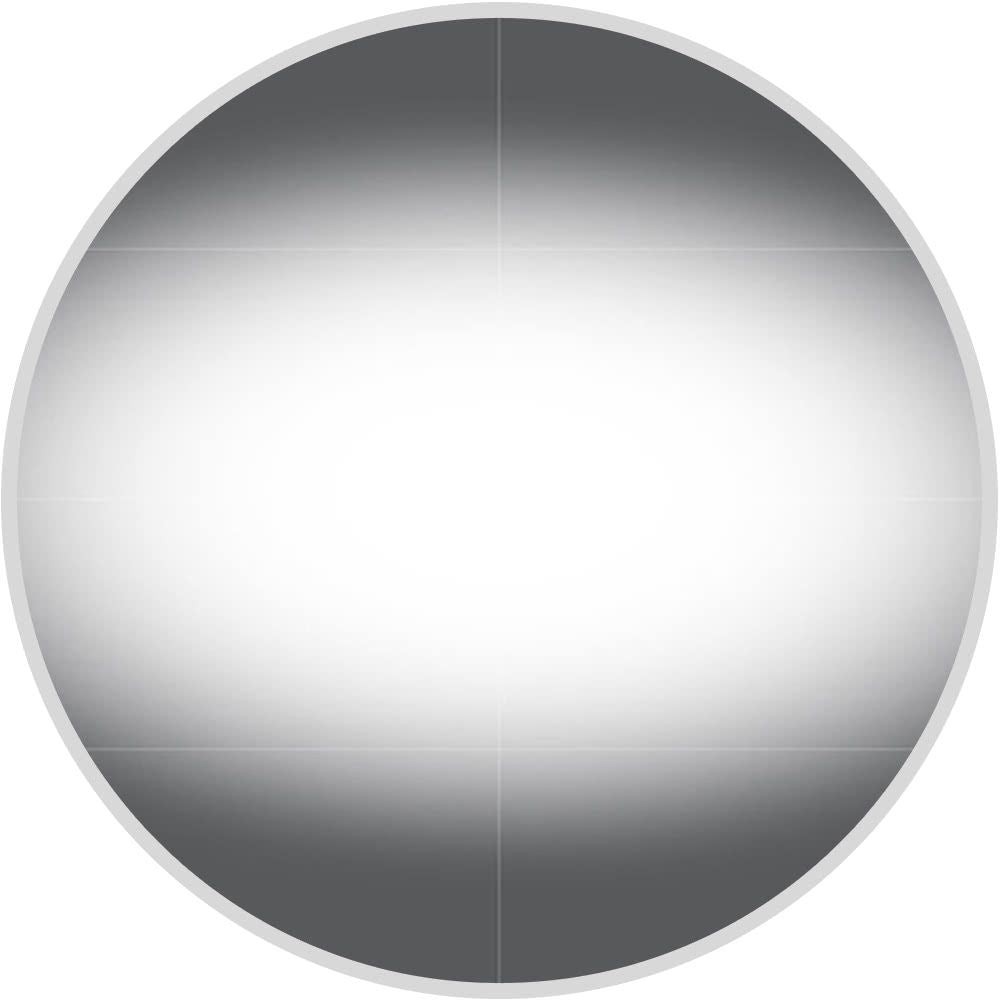

Opti-Sculpt films contain microscopic optical structures that redirect light in specific directions. Instead of randomly scattering light like diffusion filters, these optical patterns reshape the beam into controlled horizontal or vertical spreads.

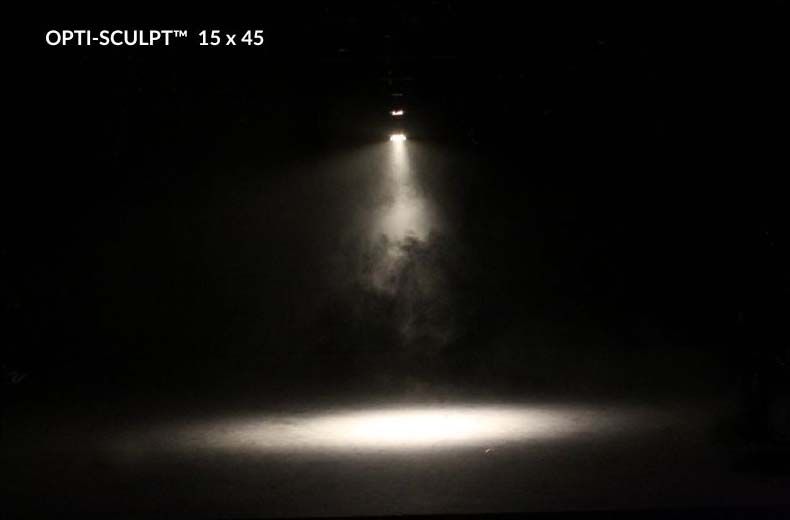

A narrow spotlight can be transformed into a wide horizontal beam to evenly illuminate a wall, façade or artwork without changing the lighting fixture itself.
Why Opti-Sculpt is Different from Diffusion
| Feature | Standard Diffusion | Opti-Sculpt |
|---|---|---|
| Light Control | Softens light | Redirects and reshapes beam |
| Beam Pattern | Random scatter | Controlled beam shaping |
| Lighting Efficiency | Can significantly reduce output | Maintains higher usable light |
| Typical Use | Softening fixtures | Architectural beam control |
Learn More About Opti-Sculpt
If you're new to beam shaping filters or want to understand how different optical patterns affect lighting design, our detailed guide explains how the Opti-Sculpt system works and how designers use it in real projects.
Recommended Testing for Designers
Lighting designers often test multiple beam shaping options before specifying fixtures. Rosco offers tools that allow designers to evaluate different optical patterns before committing to a project.
Opti-Sculpt Design Kit
Test multiple beam shaping lenses with your lighting fixtures.
View the Opti-Sculpt 11 Piece Design Kit
Opti-Sculpt Swatchbook
A compact sample set for quick evaluation of optical patterns.
Installation Tips
- Cut the Opti-Sculpt sheet to fit the fixture lens or accessory frame.
- Install inside the fixture lens holder or frame.
- Ensure the optical pattern orientation is correct for the intended beam direction.
- Test beam distribution and adjust orientation if necessary.
Cautions & Disclaimer
- Always test beam shaping materials with your specific fixture and installation.
- Ensure the material is installed correctly and securely within the fixture.
- Improper installation may affect beam distribution.
All technical data, recommendations and service are accurate to the best of our knowledge. Rosco assumes no responsibility for results obtained or damage incurred from use since method of application and use are beyond our control.
